1/2”雙把水龍頭塑膠閥芯 HJN系列
1/2 Inch Brass Two Handle Faucet 7.6 X 20C Teeth 1/2"-14NPSM 90 Degree Ceramic Cartridge (Plastic Body)
HJN Type
1/2 Inch Brass Two Handle Faucet 7.6 X 20C Teeth 1/2"-14NPSM 90 Degree Ceramic Cartridge (Plastic Body)
1/2 Half inch Two Handle Faucet Brass Ceramic Cartridge (Headwork) fits most of the two handle kitchen and bathroom lavatory basin faucets. The half-inch size ceramic cartridge can offer faucet abundant flow rate in style design. With worldwide certificates, we are experienced to help faucet brands in the world to meet their requirements properly, like cUPC / NSF / WRAS / ACS / DVGW-KTW / Watermark.
The materials of Half inch Two Handle Ceramic Cartridge can be normal brass; EU brass; DZR brass; Lead-free brass; Stainless steel. The thread can be G1/2"; 1/2" - 14NPSM, etc. Turning angle can be 90°, 180°, 270°; 1/4 turn, 1/2 turn, 3/4 turn.
Two Handle Faucet Brass Ceramic Cartridge is also called: Brass ceramic disc tap valve cartridge; Insert gland Fits; Rough-in Widespread Valve Cartridge; Brass shell Ceramic Cartridge; Headwork.
Since the 1970s, Geann has been the ceramic cartridge(Headwork) expert for decades. Having the most advanced CNC machine and automatic assembling center, Geann is available to meet any demand quick and efficient. In addition, our high-grade materials like no-lead brass, EU brass, and normal brass are all from reliable suppliers, which have stable quality.
Geann has developed thousands of Two Handle Faucet Brass Ceramic Cartridge, which provides more design options for the designers and technicians. If you can not find the appropriate cartridge type, Geann sales team will help you with pleasure.
FEATURES
※Special seat design provides better operation torque for consumers and installation tolerance.
※As cartridge consultant, Geann team can ensure the cartridges are compatible with your faucet perfectly.
※Complies with worldwide certificates, like cUPC / NSF / WRAS / ACS / DVGW-KTW / Watermark.
APPEARANCE
Surface Process Type
We provide different type of surface processing for you. Surface Process types are Nickel Black, Chrome Plated, Baking Varnish, Nickel Plated, Copper Plated, Gold Plated.
FLOW RATE

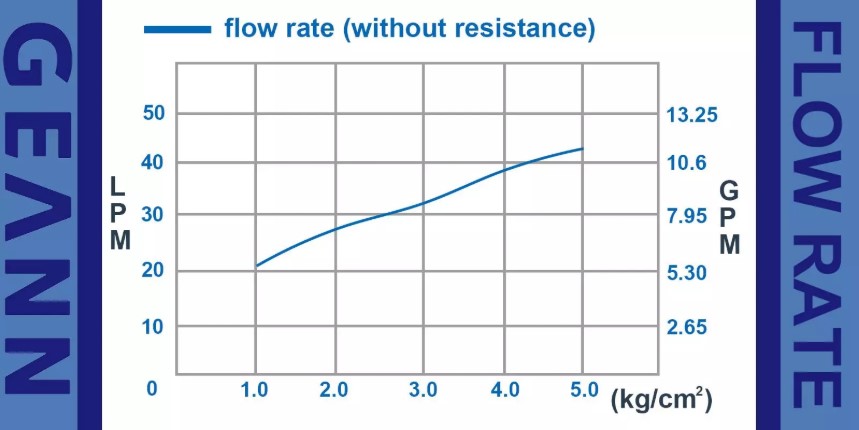

DHJN Type-flow rate curve
PRODUCT INSTRUCTION MANUAL

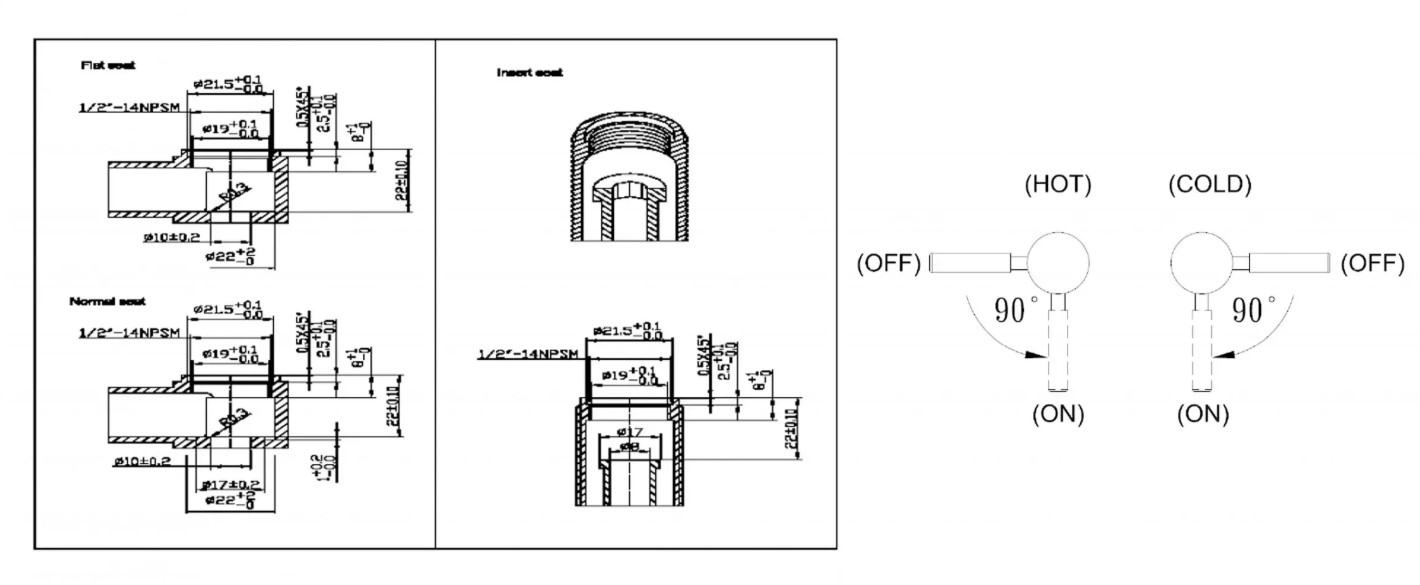

DHJN-Instruction Manual
Specification
Available for different dimension and teeth spline.
Endure more than 500,000 cycles, which comply with cUPC ASME A112.18.1 Lifecycle test.
The Order Process and Lead Time
Send inquiry to Geann, we'll answer you within 1 day.
We provide free samples as you required
Once the order confirm and payment received, prodution lead time is less than 30 days.
