27mm 2 Port 2 Fucntion Brass Cartridge 20 Teeth Spindle 90 Degree Turn Diverter Cartridge

Geann designs 27mm 2 ports brass diverter cartridge to fit with tub and shower combination fixtures. This brass ceramic diverter cartridge can easily divert water between rain showerhead, hand shower or spout. We hold ISO9001:2015 certification and our products got numerous certificates, such as NSF61/9-G, cUPC, WRAS, ACS, DVGW-KTW, W270, Watermark etc. We use state-of-the-art CNC machine and automatic assembling center to produce high quality cartridges and valves. This enables us to cooperate with world well-known tap brands and earned good reputation from the partners. If you want more than just a supplier, we might well be the one you need and what we can offer will exceed all your expectations. We are more than glad to help with any request.

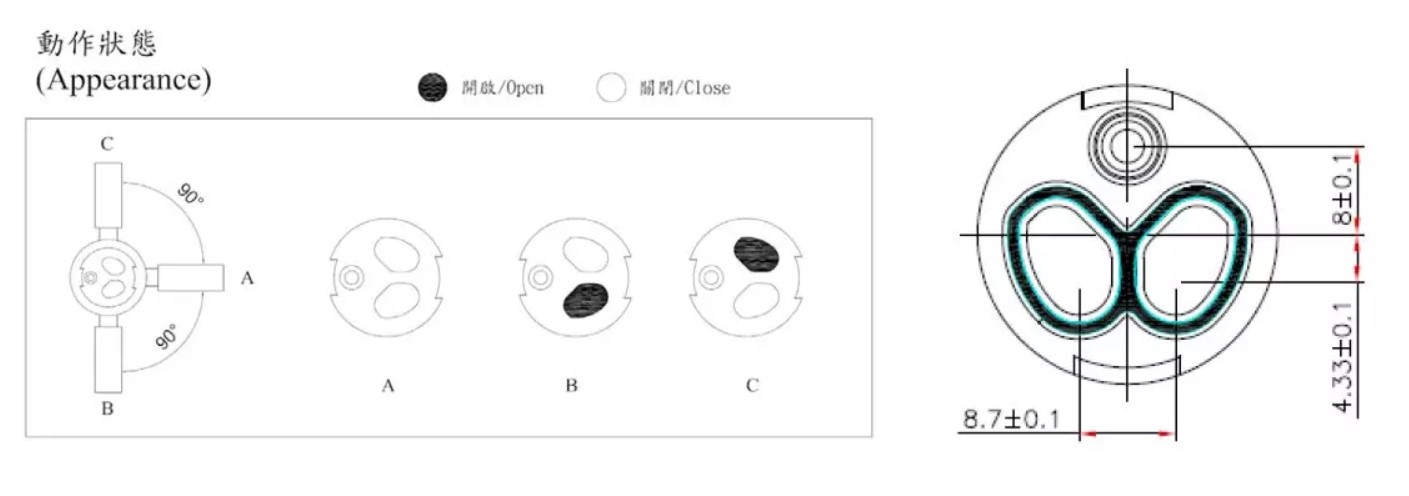

APPEARANCE

FEATURES

※It can be a replacement of plastic diverter.

※High durability.

※Economic and competitive cost.

※Lead free, Eco-friendly product. It meets California AB1953 / ROHS / NSF61-9.

※Certifications: NSF / IAPMO / WRAS / ACS / KTW-DVGW / W270 / WATERMARK

※Water Outlet: 2

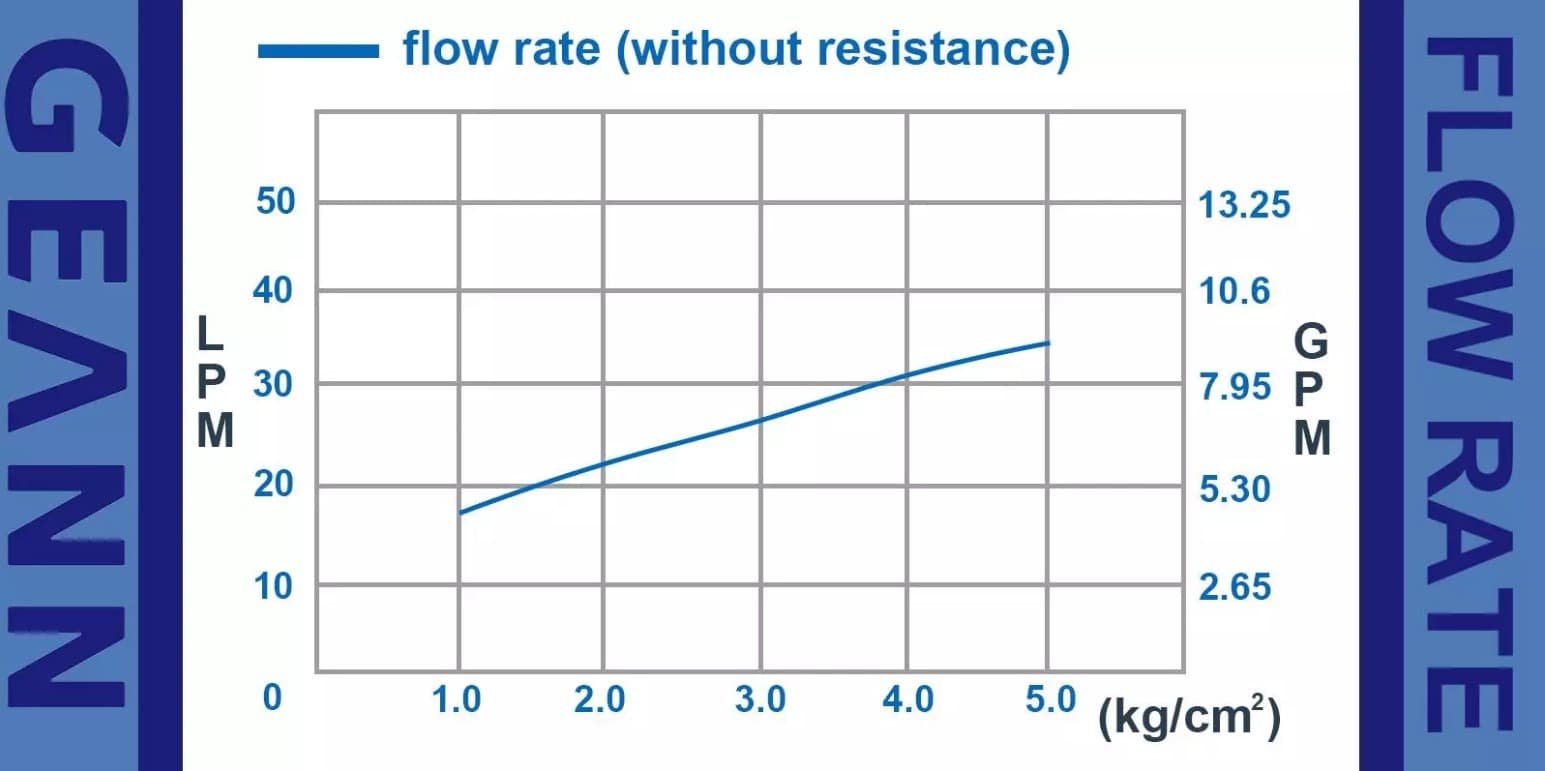

FLOW RATE

PRODUCT INSTRUCTION MANUAL

DHJV81820W-PH00-Instruction Manual

Available Material: Normal brass, EU brass, Lead-Free brass

Water Pressure: 0 - 5 Bar (Recommend value)

Cap Tightening Torque: 8 ~ 10 N-m

Stem Operation Torque: 5.1 N-m (Max)

Ceramic Disc Material: AL2O3 92% - 96%

Temperature: 90°C (Max), Normal usage 65°C

Endurance Test: 15000 cycles (according to ASME A112.18.1 5.6 standard)

Send inquiry to Geann, we'll answer you within 1 day.

We provide free samples as you required

Once the order confirm and payment received, prodution lead time is less than 30 days.
