Thermostatic Valve

The BT-T39LF-38 thermostatic mixing valves maintain and limit hot water to desired selectable temperature between 80°F and 120°F (27°C and 49°C) with flow rates as low as 0.25 gpm (1.0 lpm) and as high as 2.25 gpm (8.5 lpm). The mixing valve is listed to ASSE 1070 for single fixture applications and IAPMO cUPC.

The BT-T39LF-38 features a rapid response thermostatic element for superior control. The thermostatic element senses the outlet water temperature and reacts to maintain a constant delivery temperature even under changing flows or variations in supply temperatures or pressures. It provides stable operation at flow rates as low as 0.25 gpm (1.0 lpm). The valve also reduces the outlet flow to a trickle in the event of a cold water supply failure.

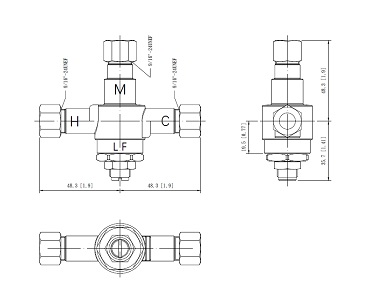

The BT-T39LF-38 has inlet a compression connection to 3/8" OD tube. Supplied standard with integral check valves on both inlets to prevent cross-flow.
